Stainless steel low pressure crude oil filter - stainless steel duplex low pressure crude oil filter - stainless steel duplex oil filter cb/t425-94

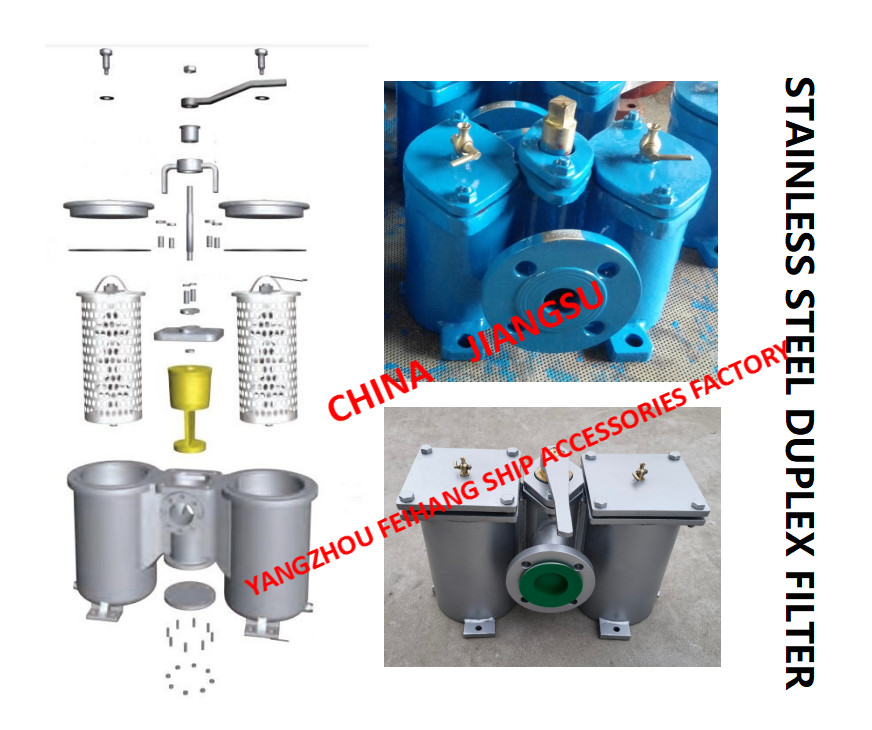

Referring to the cb/t425-1994 GB duplex low-pressure crude oil filter, we will think that it is generally cast iron, as shown in the following figure:
This time, the customer proposed to use stainless steel to make this low-pressure crude oil filter. As we all know, the production process of this oil filter is casting. If the quantity is small, it is certainly not suitable for casting, and the cost is also very large. At this time, based on our experience and communication with customers, our factory adopted the welding process to make this stainless steel duplex low-pressure crude oil filter, that is, it was assembled and welded from the beginning of raw materials to the final forming. (the actual process diagram is as follows)

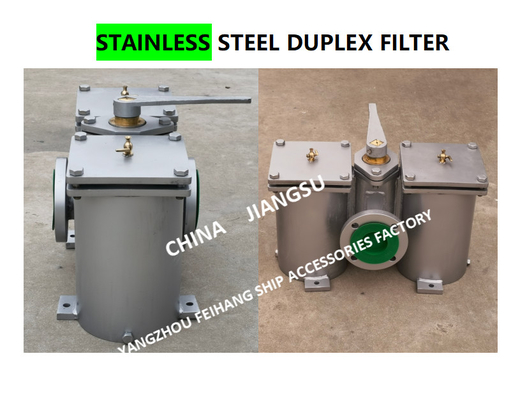

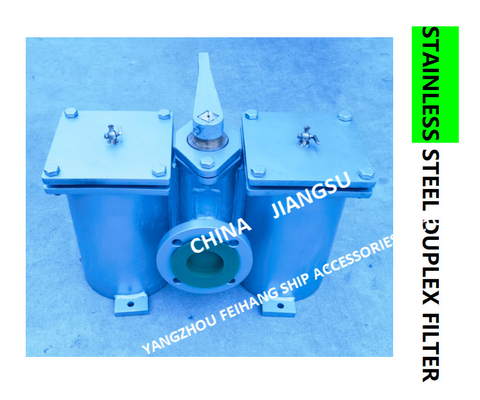

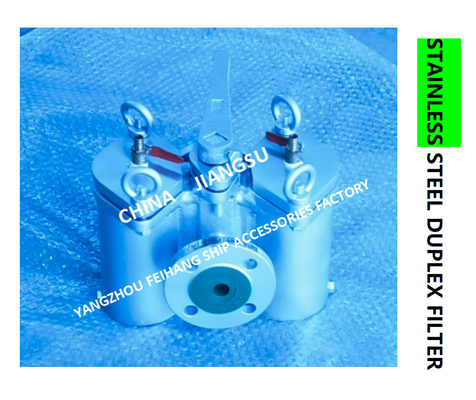

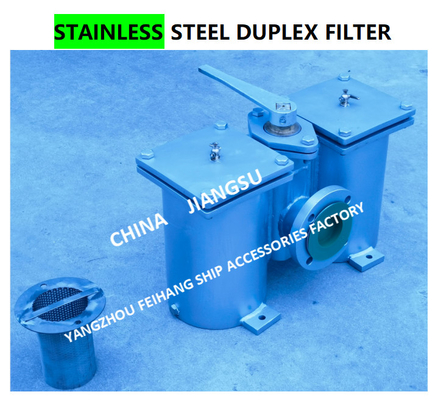

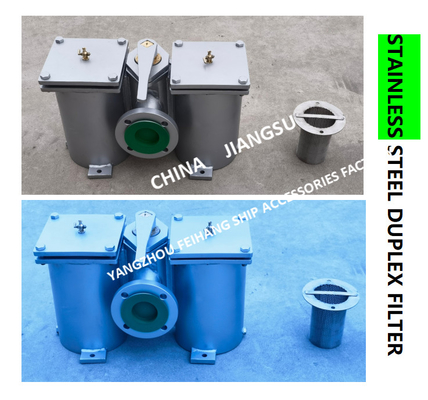

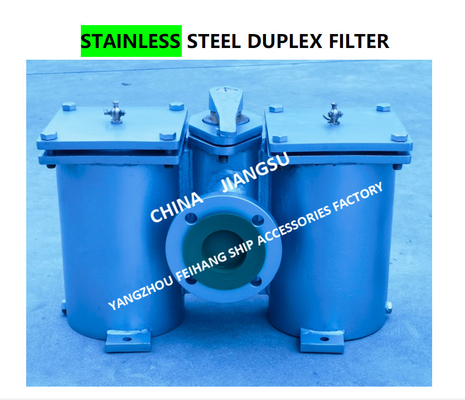

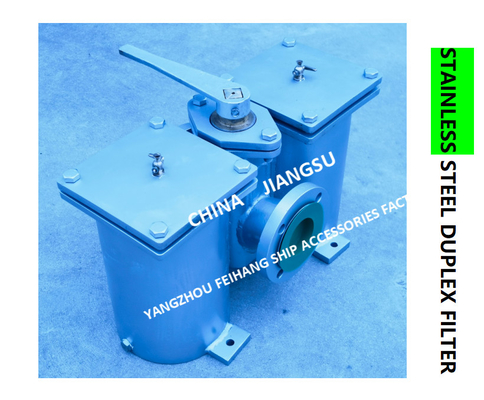

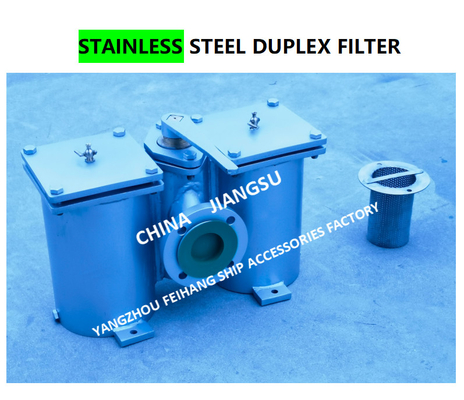

Let's take a look at the stainless steel duplex crude oil filter delivered to the customer this time:
VFD duplex oil filter-vfd stainless steel duplex oil filter
(stainless steel duplex oil filter, duplex low-pressure crude oil filter) technical requirements:
(stainless steel low pressure crude oil filter) nominal diameter: 80mm
(stainless steel low pressure crude oil filter) design pressure: 0.5MPa
(stainless steel duplex LP crude oil filter) flange standard: ASME B16.5 class150#
Body cover plate filter element material: SUS316L stainless steel, filtration accuracy -60 mesh
(stainless steel duplex oil filter, duplex low-pressure crude oil filter) production drawing requirements:
Stainless steel duplex filter, stainless steel duplex sea water filter, stainless steel duplex oil filter, stainless steel duplex low-pressure crude oil filter as80-0.25/0.16 cb/t425-94 at the outlet of the lubricating oil separator
Oil purifier outlet stainless steel duplex filter, stainless steel duplex sea water filter, stainless steel duplex oil filter, stainless steel duplex low pressure crude oil filter as80-0.25/0.16 cb/t425-94
Fuel oil separator stainless steel duplex filter, stainless steel duplex sea water filter, stainless steel duplex oil filter, stainless steel duplex low pressure crude oil filter as80-0.25/0.16 cb/t425-94
Diesel oil separator stainless steel duplex filter, stainless steel duplex sea water filter, stainless steel duplex oil filter, stainless steel duplex low pressure crude oil filter as80-0.25/0.16 cb/t425-94
