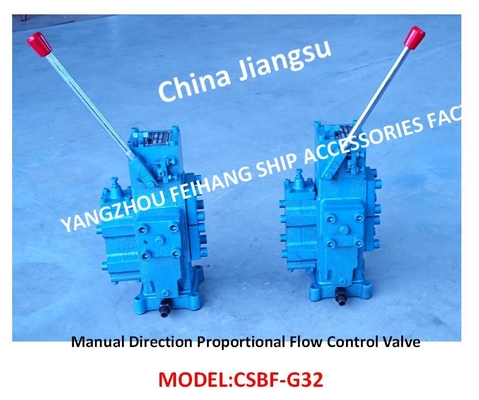

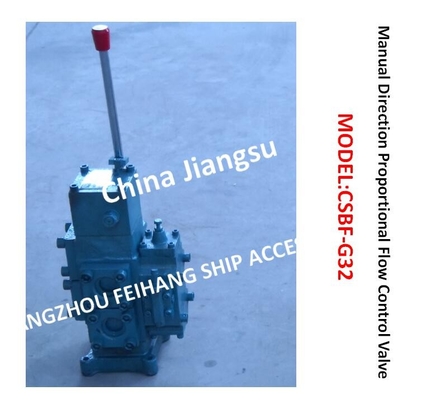

Windlass Control Valve - Servo Control Valve CSBF-G32
Cable twister control valve - hoist control valve CSBF-G32
CSBF-G32 Windlass Manual Proportional Valve - Marine Manual Proportional Control Valve - Manual Proportional Flow Compound Valve
CBSF-G32 Marine Manual Proportional Flow Compound Valve Product Overview:
This CSBF-G32 marine manual proportional flow valve is mainly suitable for all kinds of windlass, steering gear, hoist variable speed operation, to retract and lower the cable work.
Marine Manual Proportional Compound Valve CSBF-G32 Model Significance:
|
C-Marine S-Manual BF-Proportional valves
M-Spool valve function at median (M type can be omitted)
G-Nominal path 32-DN32(32mm)
|
Marine manual proportional valve, manual proportional flow compound valve CSBF-M-G32 technical parameters:
| Nominal dia.(mm) |
Nominal flow(L/min) |
Nominal pressure(MPa) |
Mid-position pulley enginery |
| 32 |
200 |
5-25Mpa |
M-type |
(Yangzhou Feihang Ship Accessories Factory) production of manual proportional flow direction compound valve Process:
| |
|
▲Pour the blank parts ▲Then grind and process ▲Assemble
▲Water pressure test ▲Paint ▲Packaging and shipping
|
Marine manual proportional compound valve CSBF-G32 external structure dimensions:
Marine CSBF-G32 manual proportional compound valve, manual proportional flow directional valve maintenance and replacement instructions:
Due to the time factor, the nameplate of this manual proportional valve will gradually corrode, at this time we can accurately judge the nominal diameter of this manual proportional valve through the above data.
CSBF-G32 Manual Proportional Flow Compound Valve According to the function of the intermediate position spool valve, it can be divided into:
▲CSBF-M-G32 marine manual proportional flow directional valve
(Expressed as: the median function is M type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and the manual proportional flow direction compound valve)
▲Marine manual proportional flow compound valve CSBF-H-G32
(Expressed as: the median function is H type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and the manual proportional flow direction compound valve)
▲Marine CSBF-Y-G32 manual proportional flow directional valve
(Expressed as: the median function is Y type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional flow direction compound valve)
▲CSBF-K-G32 marine manual proportional flow directional valve
(Expressed as: the median function is K type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and the manual proportional flow direction compound valve)
▲Marine manual proportional flow directional valve CSBF-P-G32
(Expressed as: the median function is P-type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional flow direction compound valve)
Our factory (Yangzhou Flying Ship Accessories Factory) delivery site:
Yangzhou Feihang Ship Accessories Factory provides you with this CSBF type manual proportional flow compound valve selection manual;
