Manual Direction Proportional Flow Control Valve 35SFRE-MO32B-H3
The basic product information of the 35SFRE-MO32B manual proportional flow valve is as follows:
|
model
|
Nominal dia.(mm) |
Nominal flow(L/min) |
Nominal pressure(MPa)
|
Mid-position pulley enginery
|
| 35SFRE |
32 |
280 |
21Mpa |
M0 |

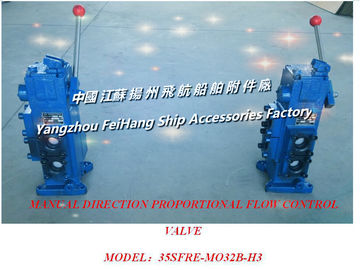

The actual shot of this 35SFRE-MO32B-H3 manual proportional flow reversing valve is as follows:

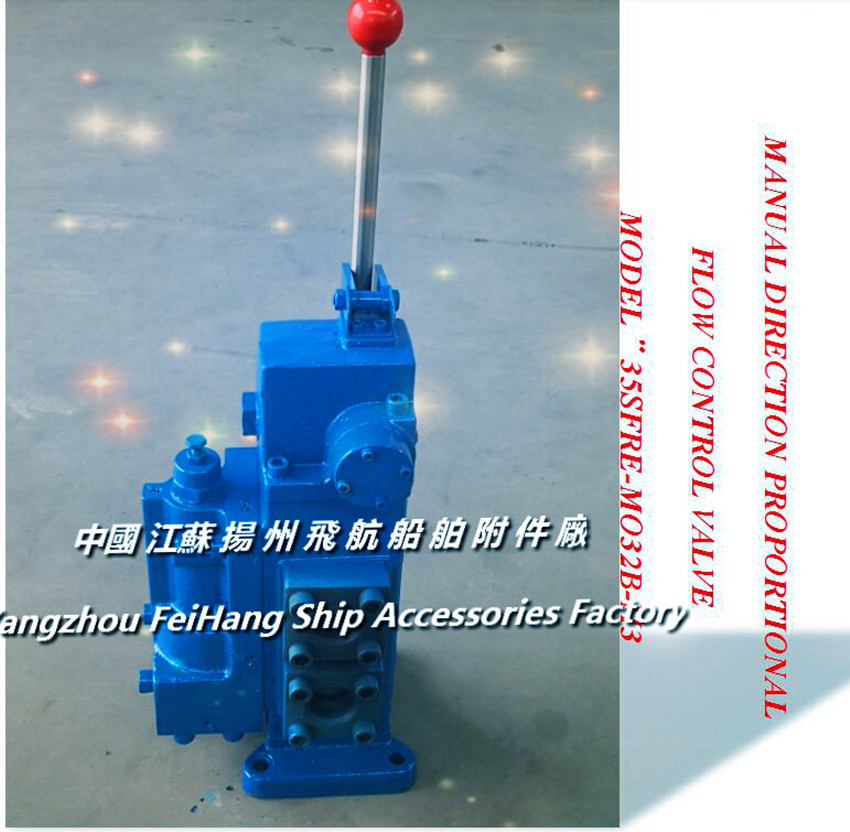

▲35SFRE-MO32B-H3 marine manual proportional flow reversing valve
(Expressed as: three-position five-way, the median function is MO type, the nominal diameter is DN40, the connection mode is flanged manual proportional valve, manual proportional valve reversing speed control valve)
▲35SFRE-MN32B-H3 manual proportional flow reversing speed control valve
(Indicated as: three-position five-way, the median function is MN type, the nominal diameter is DN40, the connection mode is flanged manual proportional valve, manual proportional valve reversing speed control valve)
▲35SFRE-MJ32B-H3 marine manual proportional flow reversing compound valve
(Indicated as: three-position five-way, the median function is MJ type, the nominal diameter is DN32, the connection mode is flange-connected manual proportional valve, manual proportional valve reversing speed control valve)
▲ Marine manual proportional flow reversing valve 35SFRE-MY32B-H3
(Indicated as: three-position five-way, the middle machine can be MY type, the nominal diameter is DN32, the connection mode is flanged manual proportional valve, manual proportional valve reversing speed control valve)

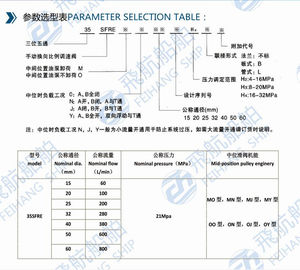

Marine Marine Manual Proportional Flow Compound Valve 35SFRE Series Selection Standard:
