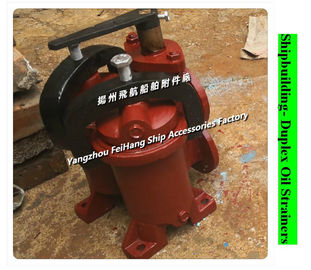

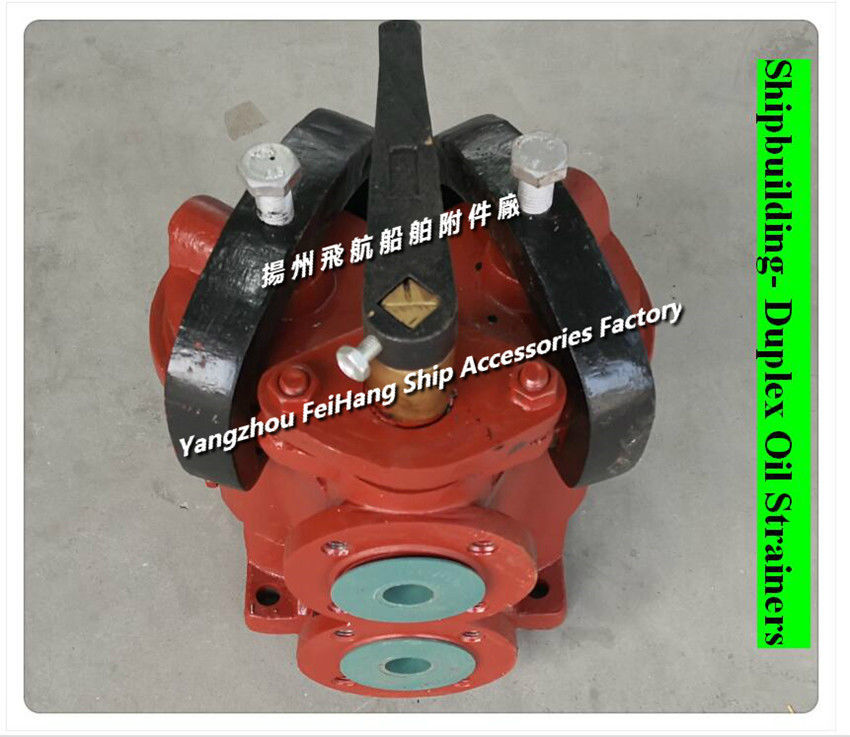

Compound oil filter for shipbuilding - small double oil filter
The basic product information of this marine duplex duplex oil filter is as follows:
Brand: Flying
Nominal path: 32A
Production process: pouring
Origin: Yangzhou, Jiangsu
Paint color: Red
Body material: HT- cast iron
The product of CBM1134-82 small duplex oil filter /JISF7224 small duplex double oil filter is as follows:
JIS F7224 small duplex duplex oil filter, JIS F7202 compound oil filter, marine duplex oil filter CBM1134-82, marine duplex oil filter CBM1132-82 function as follows:
The duplex oil filter is used for filtering fuel and lubricating oil, filtering out insoluble oil, so as to keep the oil clean. When the double filter is working normally, when the pressure drop of the filter core exceeds the specified value, the conversion valve should be rotated to work in another filter core cavity, and the original filter chamber is checked and cleaned to ensure the normal operation of the oil filter.
This product is suitable for ship fuel and lubricating oil pipelines at temperatures above 80 degrees.
| OIL STRAINERS 4032 CBM1134-1982;DOUBLE OIL FILTER JISF7224-32-M |
|
Type
|
Size
|
Body material
|
Filter cylinder form |
Filter material
|
Flange Connection
|
| S-TYPE |
32A |
Cast iron
|
Basket |
304 |
JIS 5K |
This type of duplex oil filter / duplex oil filter for shipbuilding is distinguished from nominal diameter.
25A-40A
Marine duplex oil filter CBM1134-82/JIS F7224 small duplex duplex oil filter
Marine Small Size Duplex Oil Strainers
The size of the CBM1134-82 small duplex oil filter is the same as that of JIS B2211-1977, and the length of the structure is consistent with that of JIS F 7224-1978.
50A-125A
Marine duplex oil filter CBM1132-82/JIS F7202 compound oil filter
Duplex Oil Strainers
The size of the CBM1132-82 small duplex oil filter is the same as that of JIS B2211-1977, and the length of the structure is consistent with that of JIS F 7202-1978.
JIS F7224 small compound oil filter / small duplex oil filter CBM1134-82 can usually be marked as:
(1) nominal diameter: DN25 nominal pressure: 0.4Mpa can be expressed as follows:
Small duplex oil filter 4025 CBM1134-82; JIS F-25A-M compound oil filter.
2. Nominal diameter: DN32 nominal pressure: 0.4Mpa can be expressed as follows:
Duplex oil filter JIS F7224-32A-M; small duplex oil filter 4032 CBM1134-82
(3) nominal diameter: DN40 nominal pressure: 0.4Mpa can be expressed as follows:
Flange cast iron small duplex oil filter 4040 CBM1134-82; JIS F-40A-M duplex oil filter.
JIS F7202 compound oil filter / duplex oil filter CBM1132-82:
(1) nominal diameter: DN50 nominal pressure: 0.5Mpa can be expressed as follows:
Flange cast iron duplex oil filter 5050 CBM1132-82; JIS F7202 5K-50A compound oil filter
2. Nominal diameter: DN65 nominal pressure: 0.5Mpa can be expressed as follows:
Duplex oil filter JIS F7202 5K-65A; duplex oil filter 5065 CBM1132-82;
(1) nominal diameter: DN80 nominal pressure: 0.5Mpa can be expressed as follows:
Marine dual oil filter 5080 CBM1132-82; duplex duplex oil filter JIS F7202 5K-80A
(1) nominal diameter: DN100 nominal pressure: 0.5Mpa can be expressed as follows:
Cast iron double oil filter 5100 CBM1132-82; JIS F7202 duplex oil filter type 5K-100A-M
(1) nominal diameter: DN125 nominal pressure: 0.5Mpa can be expressed as follows:
Flange cast iron duplex oil filter 5125 CBM1132-82; JIS F7202 5K-125A compound oil filter
Finally, customers at home and abroad are welcome to contact us at any time.
(CB/T425-1994 double oil filter; CBM1134-82 small double double oil filter; CBM1132-82 compound oil filter; JIS F7224 small compound oil filter; JIS F8220 compound oil filter)
