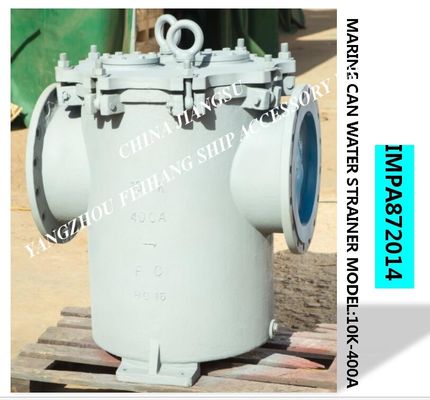

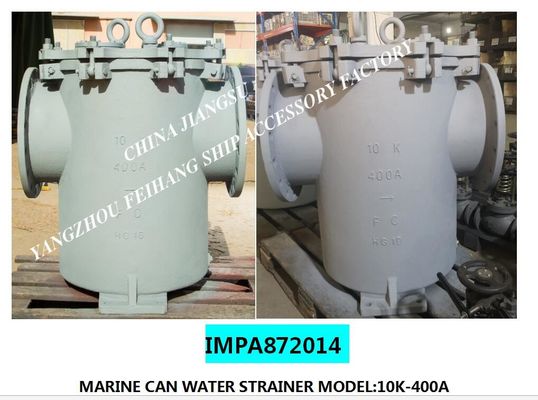

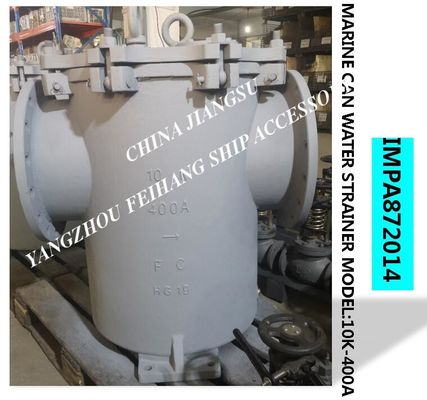

Marine Can Water Strainer 10K-400A S-TYPE JIS F7121-1996
Marine Can Water Strainer 10K-400A LB-TYPE JIS F7121-1996
Marine daily standard flange cast iron cylindrical sea water filter
IMPA872014 marine cylindrical water filter MARINE CAN WATER FILTERS FH-10K-400 S-type (straight-through cylindrical sea water filter)
IMPA872014 marine cylindrical water filter MARINE CAN WATER
<MADE OF CASTING STEEL AND USED FOR WATER PIPELINES IN SHIP.
COMPLETE WITH INNER STRAINER. CONNECTIONG FLANGE SIZE ARE CONFORM TO JIS 10KG㎡ STANDARD.>
This Japanese standard cast iron cylindrical seawater filter is very common on ships. Its function is to continuously filter out solid impurities in the system during work, maintain the cleanliness of system media, reduce the failure rate of system components, and extend the service life of system media and equipment. There are S-TYPE straight-through type and LA/LB-right angle type.
Can Water Filter marine flange cast iron straight-through cylindrical sea water filter 10K-400A S-TYPE The materials of each part are as follows:
IMPA872014-JIS 10K-10K-400A- S-TYPE main engine sea water pump inlet straight cylindrical sea water filter
IMPA872014-Bulk sea water pump imported Japanese standard straight-through cylindrical sea water filter JIS 10K-10K-400A S-TYPE
IMPA872014-Daily fresh water pump inlet straight-through cylindrical seawater filter JIS 10K-10K-400A S-TYPE
IMPA872014-JIS 10K-10K-400A S-TYPE bilge fire pump inlet right-angle cylindrical sea water filter
BODY MATERIAL cast iron
FILTER MATERIAL Filter element-SUS304
DESIGN STANDARDS JIS F7121-1996
FORM/TYPE S-TYPE straight-through type; LA-TYPE left right-angle type
SIZE 250A
FLANGE STANDARD JIS 10K
WORKING PRESSURE 0.39Mpa
TEST AND INSPECTION GB600
IMPA872014-JIS 10K-10K-400A- LB-TYPE host sea water pump inlet right angle cylindrical sea water filter
IMPA872014-Bulk sea water pump imported Japanese standard right angle cylindrical sea water filter JIS 10K-10K-400A LB-TYPE
IMPA872014-daily fresh water pump inlet right angle cylindrical sea water filter JIS 10K-10K-400A LB-TYPE
IMPA872014-JIS 10K-400A LB-TYPE bilge fire pump inlet right angle cylindrical sea water filter
BODY MATERIAL cast iron
FILTER MATERIAL Filter element-SUS304
DESIGN STANDARDS JIS F7121-1996
FORM/TYPE LA-TYPE Left Right Angle Type
SIZE 400A
FLANGE STANDARD JIS 10K
WORKING PRESSURE 0.39Mpa
TEST AND INSPECTION GB600
