مكان المنشأ: | الصين جيانغسو يانغتشو |
اسم العلامة التجارية: | Fei Hang |
إصدار الشهادات: | Inspection Report |
Model Number: | A,AS,B,BS |
الحد الأدنى لكمية: | 1 |
---|---|
الأسعار: | Negotiable |
تفاصيل التغليف: | صندوق خشبي |
Delivery Time: | The 5 day |
شروط الدفع: | الدفع والتسليم مقدما |
Supply Ability: | 1000 |
المعيار المرجعي: | جيس F7121 | وضع اتصال: | اتصال شفة |
---|---|---|---|
الضغط الاسمي: | 0.39 ميجا باسكال | حجم شبكة: | 4-8 ملم |
JIS F7121 5k/10k Can Water Filter
Marine Can Water Strainer

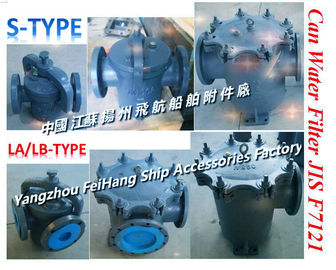

This cylindrical seawater filter is a seawater filter designed and manufactured according to the Japanese standard shipbuilding industry: JIS F7121-1998. Its models are: S-TYPE (straight through type), LA (left type right angle type), LB (right type right angle type) three forms. Nominal diameter: 25A-500A Material: Cast iron Process: Pouring |

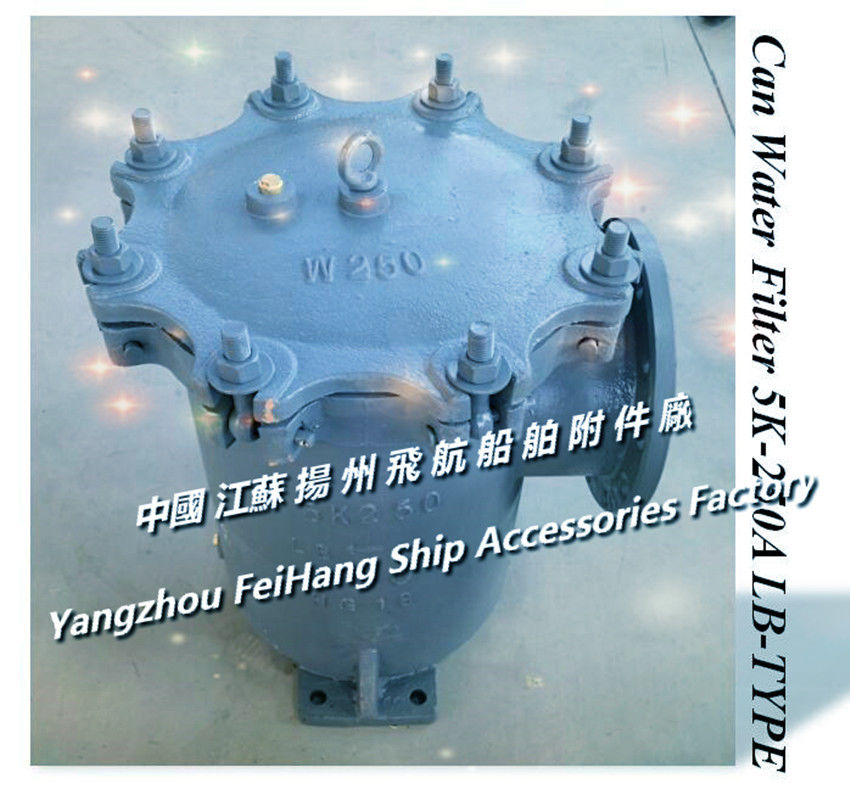

Can Water Filter 5K-250A LB-TYPE The basic product information of the boat right angle cylindrical seawater filter is as follows:
Body material | cast iron |
Filter material | Filter element-SUS304 |
Design standards | JIS F7121-1998 |
Form | LB-TYPE Right angle type |
Specification | DN250/DN200 |
Work pressure | 0.39Mpa |
Test and inspection | GB600 |
JIS 5K-250A main sea water pump imported sea water filter, daily standard cylindrical sea water filter
Auxiliary machine sea water pump imported single water filter / single sea water filter JIS 5K-200A LB-TYPE
Fresh water pump imported right angle sea water filter / right angle suction sea water filter JIS 5K-200A LB-TYPE
JIS F5K-200A Can Water Strainers Models are marked as:
Main sea water pump inlet cylindrical sea water filter JIS F7121-5k-250 LB-TYPE-8
(Definition: Marine tubular water filter with a nominal diameter of 250 mm, a LB type right angle, and a filter cartridge with a filter accuracy of 8 mm)
Marine submarine portal water filter JIS 5K-200A-6 LB-TYPE
(Definition: Nominal diameter is 200mm, the form is LB type right-angled right angle, and the filter barrel has a filter precision of 6mm.
