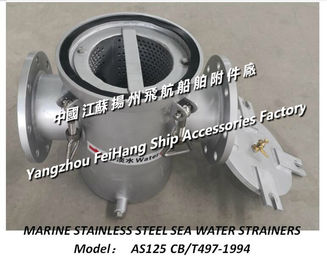

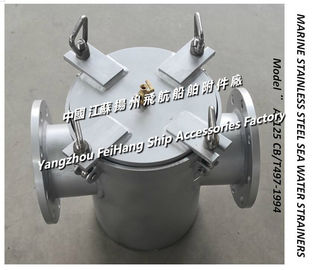

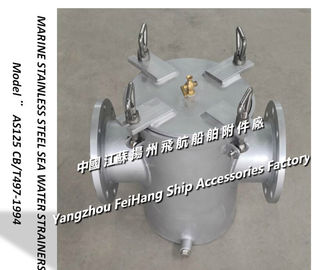

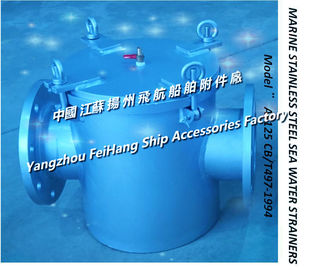

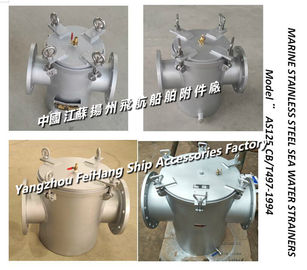

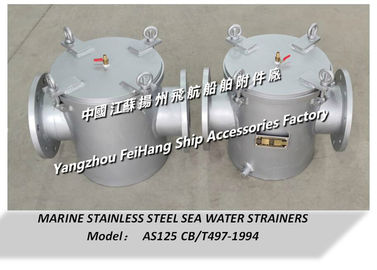

Stainless steel sea water filter - marine stainless steel sea water strainers
Model: AS125 CB/T497-1994
|
Applicable
|
Sea water pump / fresh water pump / sea water cooling system
|
| TYPE |
AS(Straight type) |
|
Nominal path
|
125A |
|
Pressure
|
0.1Mpa |
|
Material
|
316 stainless steel/304 stainless steel |
|
Thickness
|
6mm |
|
Temperature
|
≤100℃ |
| Connection |
Flange connection |
|
Certificate
|
Factory certificate |
AS125 CB/T497-1994 Marine stainless steel sea water filter, stainless steel basket sea water filter
Main sea water pump imported stainless steel sea water filter AS125 CB/T497-94
Stainless steel suction coarse water filter AS125 CB/T497-94
Auxiliary machine sea water pump imported stainless steel sea water filter A125 CBM1061-1981
Fresh water pump imported stainless steel sea water filter AS125 CB/T497-94
AS125 CB/T497-94 stainless steel suction crude water filter
Bulk sea water pump imported stainless steel sea water filter AS125 CB/T497-94
Daily fresh water pump stainless steel imported sea water filter A125 CBM1061-1981
Air conditioning sea water pump imported stainless steel sea water filter AS125 CB/T497-94
Bilge fire pump imported stainless steel sea water filter A125 CBM1061-1981
Marine stainless steel sea water filter AS125 CB/T497, stainless steel suction coarse water filter A125 CB/T497 role:
This stainless steel seawater filter is a pipe basket filter device that removes a small amount of solid particles from the liquid in the seawater pipeline. It protects the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter, its impurities are blocked. The cleaned filtrate is discharged from the filter outlet. When cleaning is required, the removable filter cartridge can be taken out and refilled after treatment. Therefore, the stainless steel seawater filter is extremely convenient to use and maintain.
Marine stainless steel crude water filter, stainless steel suction crude water filter, stainless steel single water filter AS125 CB/T497 components:
|

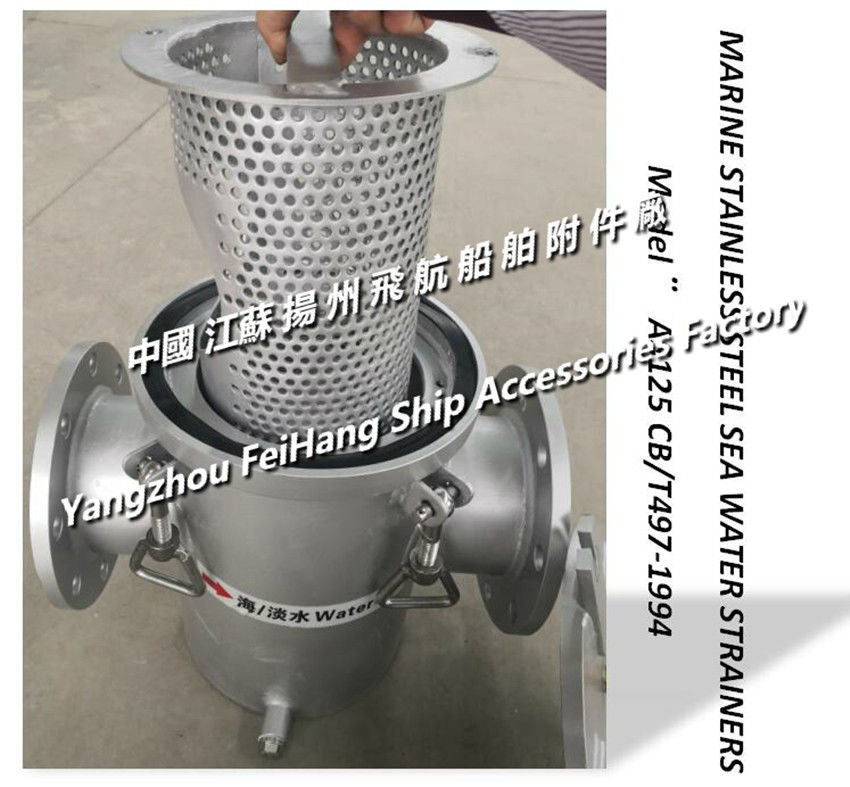

Marine stainless steel sea water filter / stainless steel suction crude water filter is mainly composed of body, nozzle, main pipe, filter cylinder, flange, flange cover and fasteners.
|
Marine stainless steel sea water filter A125 CB/T497/stainless steel suction coarse water filter AS125/stainless steel sea water filter DN125 Air release valve function and working principle Introduction:
The filter behind the sea chest is required to be ventilated. The purpose is to remove the air after the filter is cleaned, so as to avoid pumping air. After cleaning the filter, open the sea inlet valve and open the top breather valve. Let the air inside the filter be completely drained, and when the water is seen, the gas venting valve can be turned off. At this time, the air inside is completely emptied.
Selection criteria for marine stainless steel seawater filter A125 and marine stainless steel coarse water filter AS125:
| NAME |
Stainless steel Marine Can Water Filters
|
| Standards |
CB/T497-94 or CBM1061-81 or JIS F7121 or JIS F7226 |
| TYPE |
A-TYPE(Straight) B-TYPE(Angle) |
| SIZE |
DN20-1100A |
| PRESSURE |
0.1Mpa or 0.2Mpa |
| structure size |
CB/T497-94 or JIS F7121-1976 |
| Connection flange |
GB569,GB2501,JIS B2221-1977,ANSI,DIN |
| Test |
GB600 |
| Body, cover |
Stainless steel 304/316/316L |
| Filter cartridge |
Stainless steel 304/316/316L |
The production process is based on the ship industry standard CB/T497-94 suction crude water filter, CBM1061-81 seawater filter combined with the requirements of modern ships, and improved design to form the company's FH series of enterprise products.
