Shipbuilding Duplex OIL STRAINERS
Composite oil filter for shipbuilding - small double oil filter
The basic product information of this small double duplex oil filter for ships is as follows:
Brand: flying
Nominal diameter: 32A
Production process: pouring
Place of Origin: Yangzhou, Jiangsu
Paint color: red
Body material: HT-cast iron
|
OIL STRAINERS 4032 CBM1134-1982
Marine compound oil filter JISF7224-32-M-Type
|
|
Type
|
Size
|
Body material
|
Filter cylinder form
|
Filter material
|
Flange Connection
|
| S straight through type |
32A |
Cast iron
|
Basket |
SUS304 |
JIS 5K |

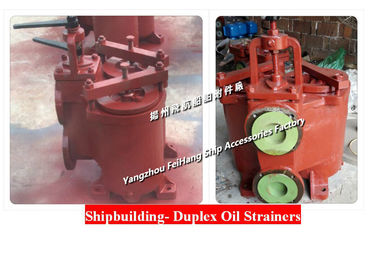

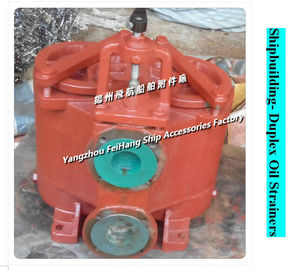

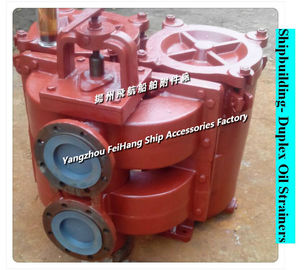

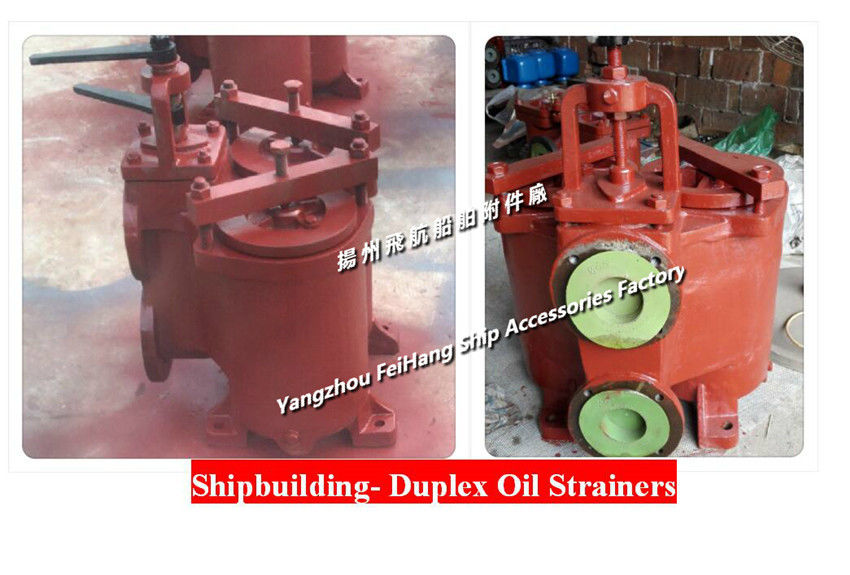

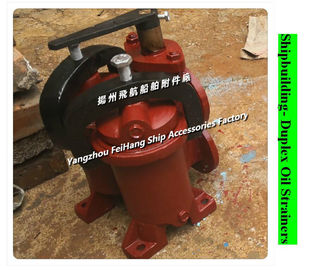

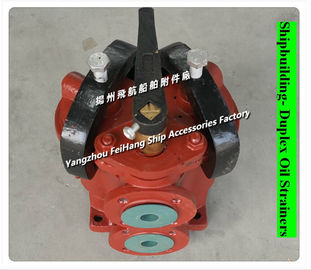

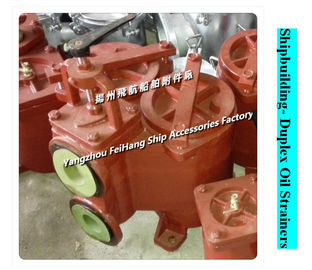

The real shot of this CBM1134-82 small double oil filter / JISF7224 small duplex double oil filter is as follows:
JIS F7224 small duplex double oil filter, JIS F7202 double oil filter, marine small double oil filter CBM1134-82, marine double oil filter CBM1132-82 function as follows:
The double oil filter is used for the filtration of fuel and lubricating oil to filter out oil-insoluble dirt to keep the oil clean. Under normal working conditions, when the pressure drop of the working filter exceeds the specified value, the switching valve should be rotated, replaced with another filter chamber, and the original filter chamber should be inspected and cleaned to ensure that the oil filter continues to operate normally. jobs.
This product is suitable for marine fuel and oil pipelines with a working temperature not higher than 80 degrees.
This shipbuilding double oil filter / double oil filter is distinguished according to the nominal diameter:
25A-40A
Marine small double oil filter CBM1134-82/JIS F7224 small duplex double oil filter
Marine Small Size Duplex Oil Strainers
CBM1134-82 small double oil filter The flange connection size is the same as JIS B2211-1977, and the structure length is the same as JIS F 7224-1978.
50A-125A
Marine double oil filter CBM1132-82/JIS F7202 double oil filter
Duplex Oil Strainers
CBM1132-82 small double oil filter The flange connection size is the same as JIS B2211-1977, and the structure length is the same as JIS F 7202-1978.
JIS F7224 small double oil filter / small double oil filter CBM1134-82 can usually be marked as:
1 nominal diameter: DN25 nominal pressure: 0.4Mpa can be expressed as follows:
Small double oil filter 4025 CBM1134-82; JIS F-25A-M double oil filter
2 nominal diameter: DN32 nominal pressure: 0.4Mpa can be expressed as follows:
Compound oil filter JIS F7224-32A-M type; small double oil filter 4032 CBM1134-82
3 nominal diameter: DN40 nominal pressure: 0.4Mpa can be expressed as follows:
Flanged cast iron small double oil filter 4040 CBM1134-82; JIS F-40A-M double oil filter
JIS F7202 double oil filter / double oil filter CBM1132-82 representation model:
1 nominal diameter: DN50 nominal pressure: 0.5Mpa can be expressed as follows:
Flanged cast iron double oil filter 5050 CBM1132-82; JIS F7202 5K-50A double oil filter
2 nominal diameter: DN65 nominal pressure: 0.5Mpa can be expressed as follows:
Compound oil filter JIS F7202 5K-65A; double oil filter 5065 CBM1132-82;
1 Nominal diameter: DN80 Nominal pressure: 0.5Mpa can be expressed as follows:
Marine double oil filter 5080 CBM1132-82; double double oil filter JIS F7202 5K-80A
1 nominal diameter: DN100 nominal pressure: 0.5Mpa can be expressed as follows:
Cast iron double oil filter 5100 CBM1132-82; JIS F7202 compound oil filter 5K-100A-M type
1 nominal diameter: DN125 nominal pressure: 0.5Mpa can be expressed as follows:
Flanged cast iron double oil filter 5125 CBM1132-82; JIS F7202 5K-125A double oil filter
Finally: Welcome customers at home and abroad to call us at any time - various double oil filters produced by Yangzhou Feihang Ship Accessories Factory:
(CB/T425-1994 double coarse oil filter; CBM1134-82 small double double oil filter; CBM1132-82 double oil filter; JIS F7224 small double oil filter; JIS F8220 double oil filter)
