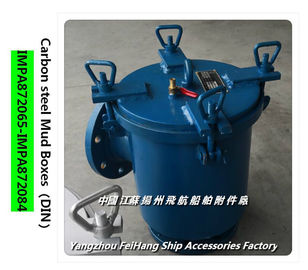

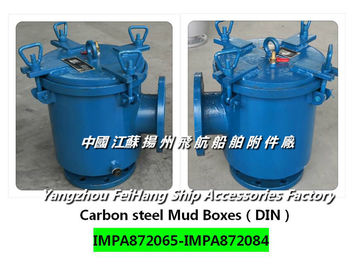

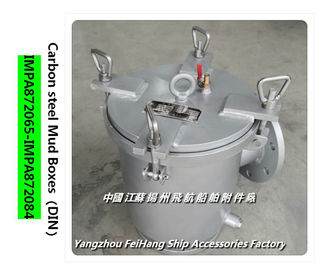

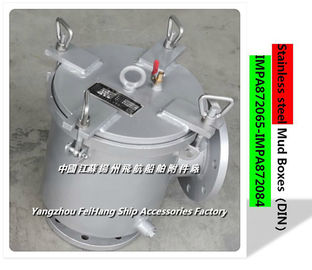

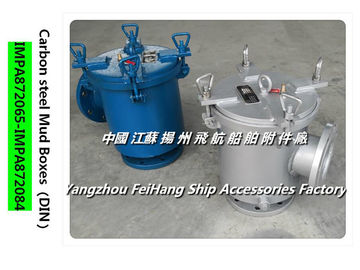

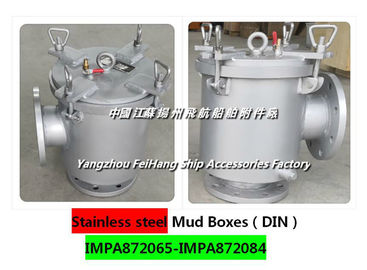

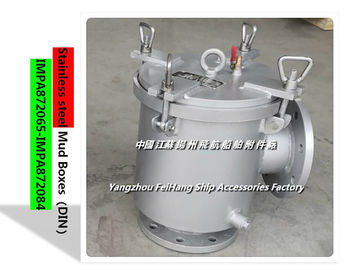

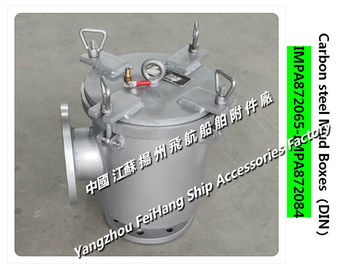

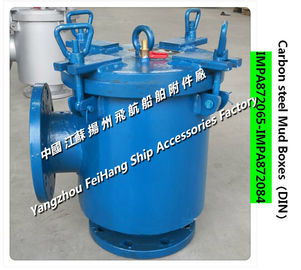

Carbon steel Mud Boxes (DIN) Cable Connection cage-mud box
impa872065-impa872084 Marine German standard mud box
About Mud Boxes (DIN) Carbon steel connection Mud Box product Overview

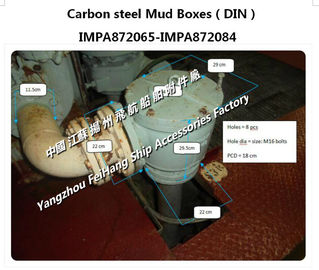

This German standard mud box is mainly used in the cabin bottom water suction port, is installed in the machine premises and Axle tunnel in the bilge water suction pipe, used to block cotton yarn, cloth, sludge and other dirt into the straw marine equipment.
impa872065-impa872084 shipbuilding with German standard right angle mud box function:
In addition to the ship's bilge water system mainly includes: bilge pump, bilge water mains, branch pipe, suction filter, distribution valve box, mud box, sewage separator and other equipment, should also be equipped with emergency drainage takeover, in order to in the cabin water immersion emergency, through the emergency Drainage Branch by the main circulating water pump or the main seawater cooling pump drainage.
About IMPA872079 Carbon steel inhalation filter, right angle mud box number meaning:
German standard carbon steel mud box din: Reference standard number is IMPA872079, the form of angle-right angle type, nominal diameter of 100mm, body material for GG-25 carbon steel, top cover, protection side cover are GG-25 carbon steel, internal parts for stainless steel filter.
Technical parameters for inhalation of right-angled mud box BS16100 IMPA872079 German standard carbon steel:
Material Specification
| COMPONENT |
Material |
En and/or DIN |
| Cover |
Carbon steel |
SUS304/SUS316 |
| Body |
Carbon steel |
SUS304/SUS316 |
| Cover Sealing |
NBR |
Nitrile or buna Nrubber |

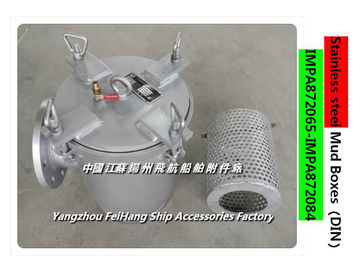

| Basket Strainer |
Stainless steel |
X5CrNi 18-10 |
| Eyebolt |
Steel |
SUS304/SUS316 |
| Bolt Nut |
Brass |
|
| Drain Plug |
Brass |
|
