FH-005 Square Steel column hydraulic lifting track type driving chair
Marine Track Driving chair-fh005

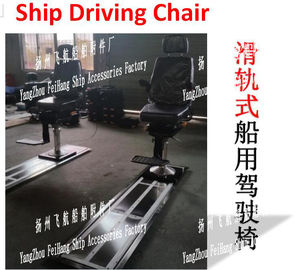

About the marine Slide-type driving Chair/track-type Marine Driving Chair product Overview: The cockpit driving chair is a seat for the crew to facilitate the operation of the Pilot.
About FH-005 Marine Slide-type driving chair/orbital boat driving Chair technical Parameters:
1. Ergonomic design;
2. The seat can be moved on the high intensity double slide slide;
3. Adjustable backrest and headrest;
4. Seat height can be adjusted by angle;
5. Seat can be moved forward and backward;
6. Foldable/adjustable Angle Comfortable seat armrest;
7. Seats can be rotated 360 degrees, multi-point positioning;
8. Foot Pedal height can be adjusted/foldable; 9. The Upright column can be up and down vertically;
About FH-005 boat slide type driving Chair/track type boat Driving Chair performance description:
The upper seat of the 1.fh-005 boat track type driving chair can be moved before and after 120mm, height adjustment 60mm, seat surface inclination range ±12°;
2.fh-005 the seat backrest of the ship's orbital driving Chair can adjust the angle 85°-135°, The headrest is adjusted up and down 50mm, the armrest multi-point positioning adjustment;
3.fh-005 the seat pedal hydraulic lifting and adjusting range 0-150mm of the ship track type driving chair;
The seat of the 4.fh-005 boat Track-type driving chair can be rotated 360°, multi-point positioning control;
5.fh-005 the seat of the orbital driving chair of the ship can be 0-5000mm on the track slide, the width of the guide rail is 500mm, the depth 28mm, the transmission part is the wheel type unimpeded double sliding, multi-point positioning control;
6.fh-005 the seat pedal of the orbital driving chair of the ship can be used for 90° regression, the upper and lower position adjustment range 0-50mm;
7.fh-005 the seat of the orbital driving chair of the ship can withstand the torque above 150ft.lb and reach the ad level standard;
About ship cockpit slide-operated driving Chair dimensions:
About the ship cockpit rail-operated driving Chair track installation method:
Shipping track cockpit driving chair order Notice:
1. According to the requirements, the chair surface material of this chair is black high-quality pu imitation leather, can be customized leather or fabric according to the requirements;
2. Chair face shape and color can be customized according to customer requirements, generally black mostly 3. Slide-type Driving Chair standard track length of 1.2 meters, if necessary to increase the length, can be customized according to the requirements;
