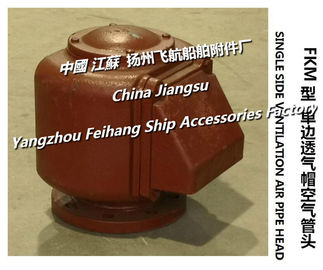

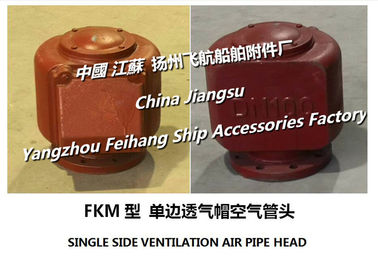

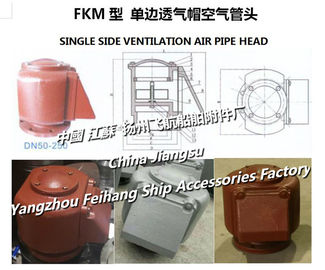

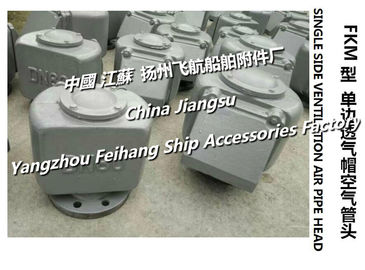

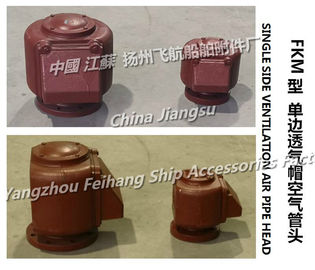

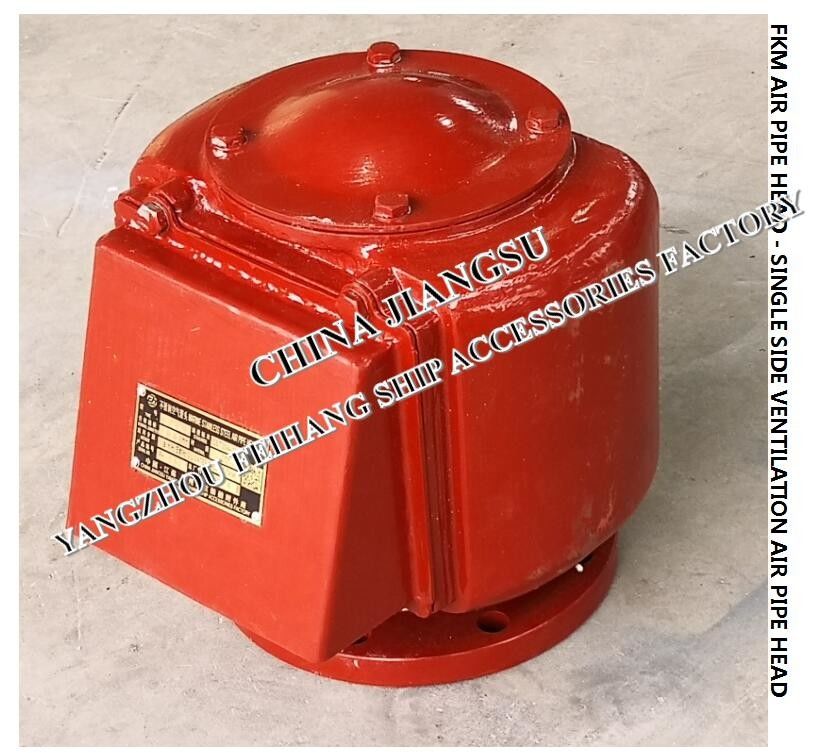

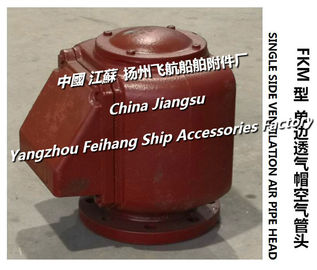

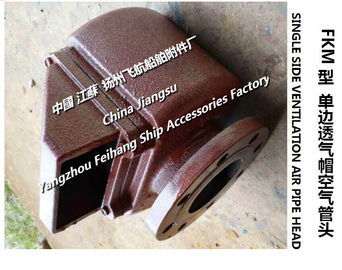

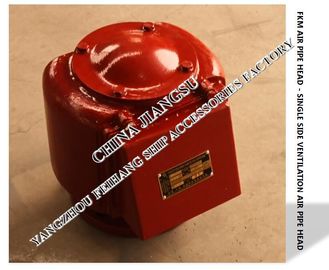

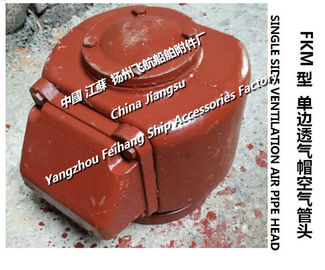

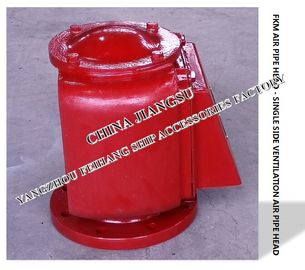

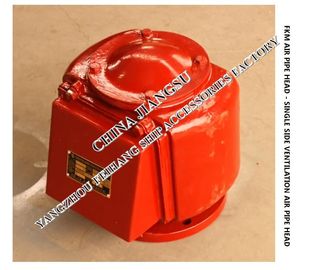

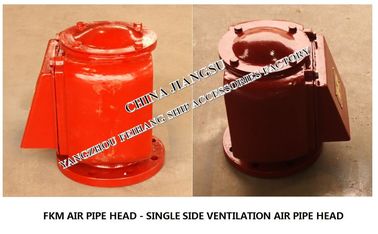

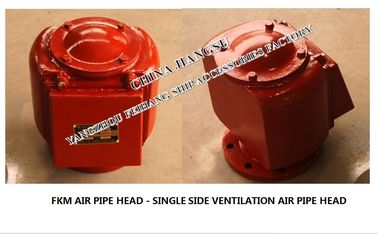

FKM Type Unilateral Breathable Air Pipe Head-Unilateral Breathable Breathable Cap FKM-125A
FKM AIR PIPE HEAD-SINGLE SIDE VENTILATION AIR PIPE HEAD
Due to the space limitations of the ship deck and cabins, we can only use the FKM type unilateral vent cap and the unilateral vent air tube head FKM-125A style for installation.
Marine fuel tank unilateral air pipe head FKM-125A CB/T3594-94, sedimentation tank marine unilateral air pipe head and lubricating oil tank marine unilateral air pipe head FKM-125A CB/T3594-94
Marine apex cabin unilateral breathable cap FKM-125A CB/T3594-94
FKM-125A CB/T3594-94 engine room marine unilateral breathable air connector
Aircraft cabin unilateral breathable cap
Ballast tank unilateral breathable air joint marine FKM ballast tank breathable cap
Marine freshwater tank unilateral breathable air pipe head / freshwater tank marine unilateral breathable cap
Basic parameters of marine FKM type unilateral breathable air pipe head and unilateral breathable cap:
| Nominal path |
125mm |
|
Applicable
|
Ship deck |
|
Material
|
cast iron/304 Stainless steel 304 |
| Connection |
Flange connection |
| Manufacturing process |
pouring |
|
Certificate
|
Factory certificate/ Certificate of ship |
Brief introduction of the function of this FKM type marine unilateral breathable air pipe head AIR PIPE HEAD self-closing device:
Mainly through inhalation and breathing, the air pressure in the cabin is close to the atmospheric pressure, keeping its pressure within the design pressure of the cabin, in addition to preventing seawater, rain, and Mars from entering the cabin and preventing sea waves and debris from entering the vent pipe into the cabin .
CB/T3594-1994 unilateral breathable air pipe head, FKM type float type air pipe head Selection table:
